Sophisticated, not complicated
Configure & Test
Simple setup and configuration using our intuitive WUI

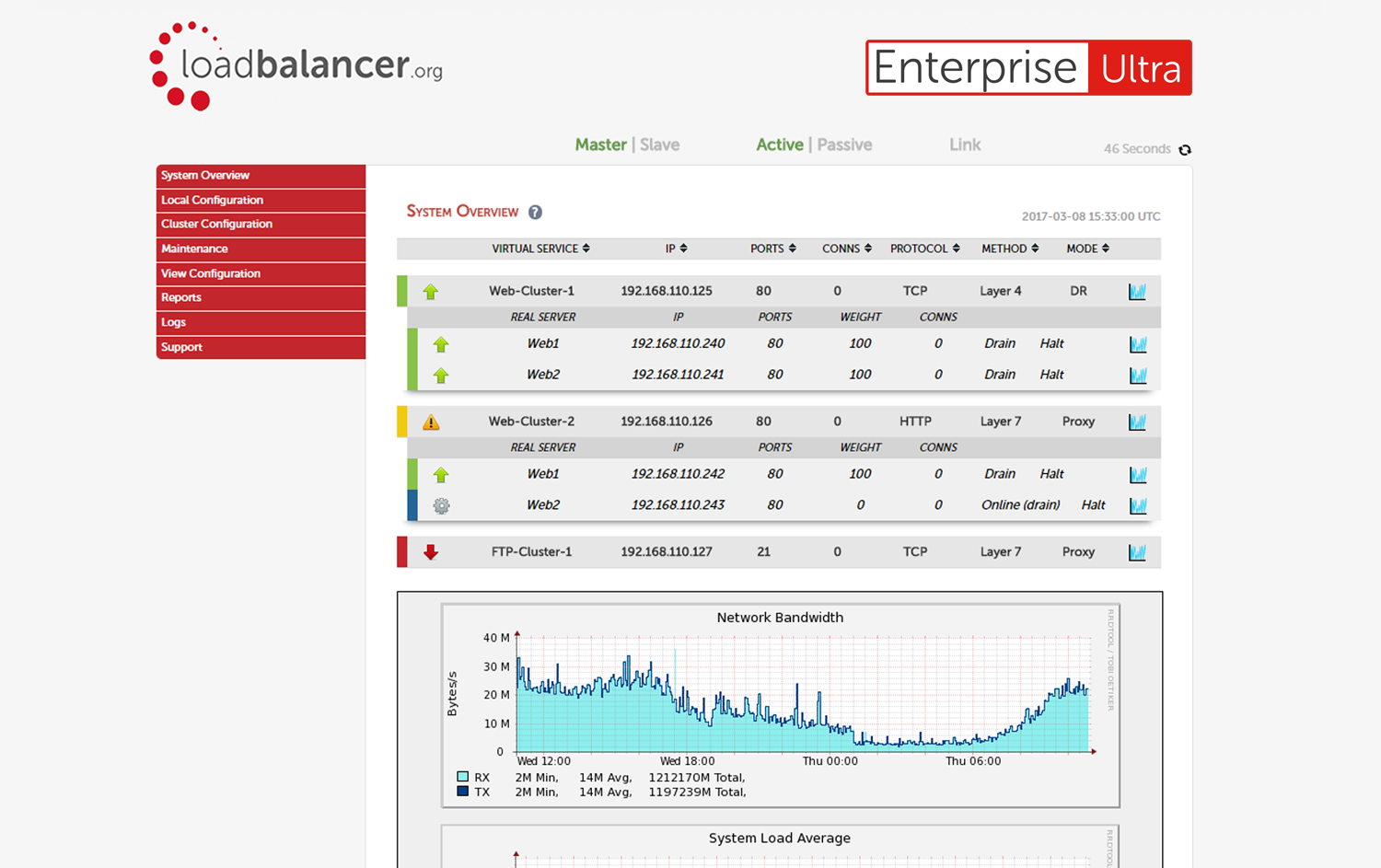

Monitor & Control
Securely monitor your infrastructure and traffic
Secure & Maintain
Hitch-free maintenance of your servers and applications

Technical Specifications
Product overview
Do you just want the best? This over-specified monster load balancer comes with the unrivalled performance of 2 x IntelĀ® 10 Core CPUs and total redundancy of everything. We guarantee you will never need more real world performance than this. For complete peace-of-mind, simply add 2 Enterprise Ultra’s in HA failover mode.
Hardware platform
- 2 x 1Gbps full duplex Ethernet ports
- 2 x 1Gbps + 2 x 10Gbps ports – Intel RJ-45 or SFP+
- Hardware RAID
- Redundant PSU
- 32Gb DDR RAM
- 2 * 10 Core Intel Xeon CPU
- Enterprise DRAC remote console
- Local admin via console/VGA and USB
- Remote console access via SSH
- Dell 430 server based
- CE/FCC Certified, UL Listed, RoHS Compliant
Standard Features
- Server Load Balancing (SLB) for any TCP or UDP based protocol
- SSL Acceleration/Offload
- Layer 7 Content Switching
- No bandwidth, performance or feature limitations
- High performance Direct Routing (N-Path), TUN, NAT and SNAT
- Schedulers: Round Robin, Least Connection, Weighted Least Connection, Weighted Round Robin
- Dynamic Schedulers: Windows and Linux feedback agents, Custom HTTP feedback option
- Load balance almost ANY protocol i.e. HTTP, HTTPS, SMTP, POP3, IMAP, Terminal Server, etc.
- Support for Direct Server Return (DSR) configurations
- Configurable S-NAT support
- Link aggregation (802.3ad)
- VLAN Tagging (802.1Q)
- GSLB
SSL
- PCI-ready SSL Implementation
- Unlimited support for SSL Certificates
- Support for Third Party Certificates
- Automated SSL Certificate Chaining
- SSL Certificate Signing Request (CSR) Generation
- PFX upload and conversion
- Proxy protocol support
Performance
- Up to 18Gbps Throughput
- SSL Acceleration/Offload up to 30,059 TPS
- 212,087 HTTP RPS
- Up to 16,833 Mbps Throughput
- 62,400,000 Concurrent sessions
L4/L7 sticky persistence
- Connection persistence based on
- Source IP address
- SSL Session ID
- Passive Cookie
- Active Cookie (Insert)
- RDP Cookie/Session Broker
- X-forwarded for header (better than Super HTTPS)
- Port following (Persistence on multiple combined ports)
- Multiple fallback options i.e. use source IP if no cookie found
Security functionality
- Fully integrated WAF (Web Application Firewall)
- OWASP top 10 protection
- Persistent White/Black List (Access Control List system)
- Firewall filtering (full iptables scripting support)
- Firewall lock down wizard
- DDOS mitigation both at layer 4 and 7
- Virtual patching
- HTTP and SYN Flood protection
- Block SQL Injection Attacks
- Prevent Cross Site Scripting (XSS)
- Stop Hackers Exploiting Software Vulnerabilities
- FIPS 140-2 Compliant
- PCI DSS Ready
Health checking and high availability
- Application health checking for DNS, FTP, HTTP, HTTPS, IMAP, NNTP and many more
- ICMP health checking of server farm machines
- Complex manually scripted health checks
- Automatic reconfiguration for defective real server machines
- Automatically remove a failed server from the load balancing pool
- Automatic replication of static and dynamic configuration from master to slave load balancer
- Stateful Failover (persistence table replication)
- One click secure clustered pair configuration
Scheduling and balancing methods
- Round Robin
- Weighted Round Robin
- Least Connection
- Weighted Least Connection
- Agent-based Adaptive (Windows and Linux Agents)
- Layer 7 Content Switching
- Destination Hash for transparent proxy
Administration
- Secure, SSH, HTTP and HTTPS for remote access administration
- Fully configurable using Web User Interface (WUI)
- Easy start configuration and maintenance wizards
- WebUI-based Help Assistant
- Virtual Service Configurations can be edited and tuned on-the-fly
- Real time performance and availability displays
- Optionally configure console port for local administration
- Remotely scriptable Command Line Interface (LBCLI) Option
- SOAP interface to the LBCLI API
- Local and Remote syslogd support
- Selective restore of physical and Virtual Service data
- Support for Connection Draining or halting with or without persistence
- Software and Security updates available on and off-line
- WebUI Log Reporting with Tabbed Browser Support
- SNMP support for performance metrics
- Full root access to with a multitude of diagnostic tools tcpdump etc.
Warranty and support services
- Hardware Warranty:
- 3 Years Next Business Day on site Engineer included as standard
- Support Options:
- Standard support – Unlimited 24/7 access to our Technical Support Engineers
- Basic support – Unlimited support during business hours (8×5)
Find the right hardware product for your application
Enterprise R20$3,995 Find out more | Enterprise MAX$5,995 Find out more | Enterprise 10G$7,995 Find out more | Enterprise 40G$9,995 Find out more | Enterprise Ultra$13,995 Find out more |
|
---|---|---|---|---|---|
Throughput | 3Gbps | 3Gbps | 18Gbps | 38Gbps | 18Gbps |
HTTP RPS | 227,405 | 227,405 | 270,244 | 316,168 | 455,936 |
Maximum Connections | 15,600,000 | 15,600,000 | 31,200,000 | 31,200,000 | 62,400,000 |
SSL TPS ECC (3K* key) | 10,306 | 10,306 | 19,584 | 19,584 | 30,059 |
Price | $3,995 | $5,995 | $7,995 | $9,995 | $13,995 |
