Enterprise 50G

48Gbps

Throughput

351,298

HTTP RPS

31,200,000

Max Conns

19,584

SSL TPS

Sophisticated, not complicated

Configure & Test

Simple setup and configuration using our intuitive WUI

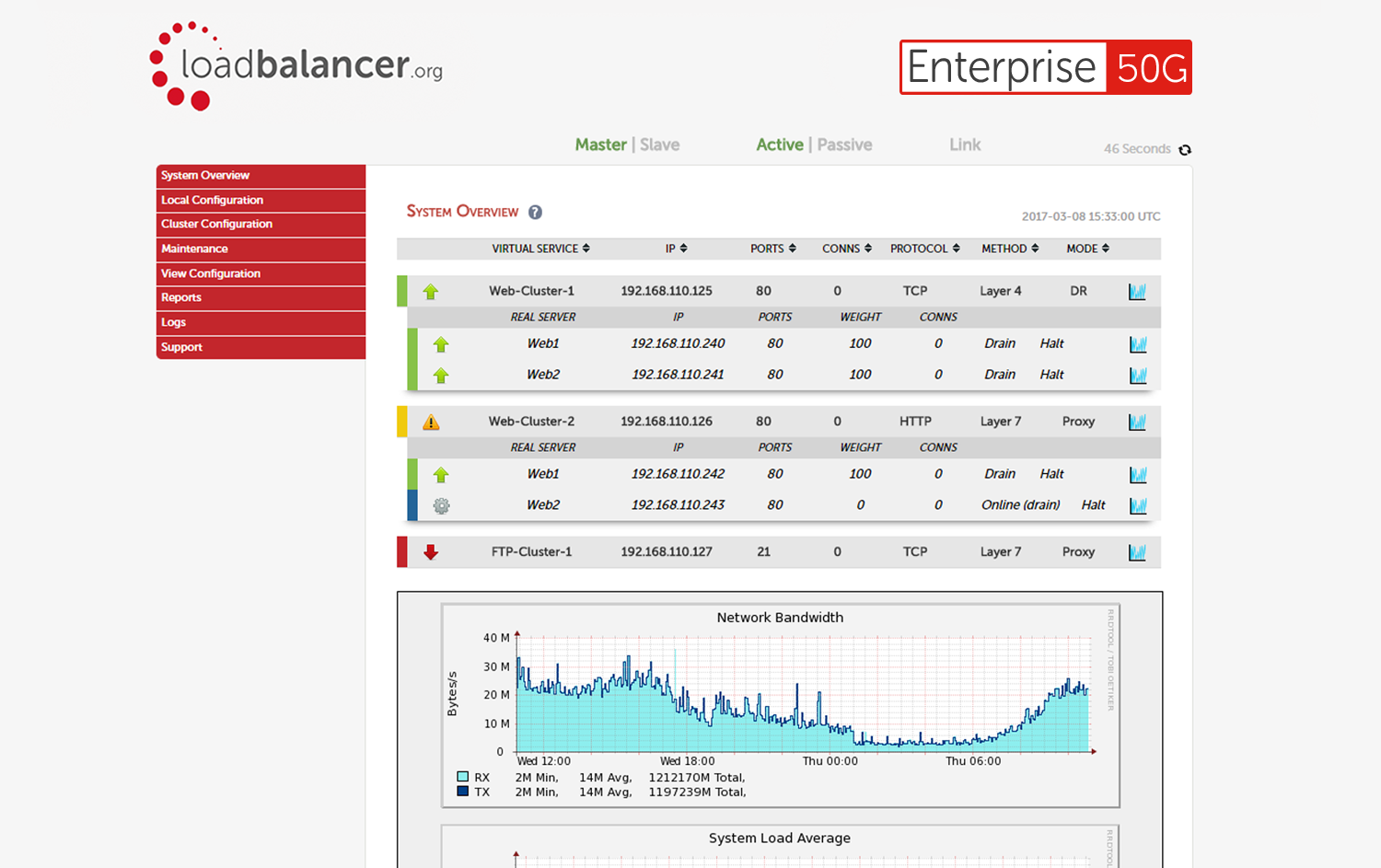

Monitor & Control

Securely monitor your infrastructure and traffic

Secure & Maintain

Hitch-free maintenance of your servers and applications

Technical Specifications

Product overview

Ideal for high throughput networks and performance lab environments, the Enterprise 50G delivers speed and scalability for ultra HD video delivery, enterprise storage, and many other demanding applications.

Hardware platform

  • 2 X 10/100/1000Mbps Auto-negotiation Ethernet ports
  • Optional Cards:
    • 2 x 25GbE ports on Mellanox MCX512F-ACAT
    • 2 x 50GbE ports on Mellanox MCX516A-GCAT
    • 2 x 40Gbps ports on Mellanox MCX314A-BCCT
  • 16Gb DDR RAM
  • Hexa Core Intel Xeon
  • Local console access via VGA, USB, Serial
  • Remote console access via SSH
  • Dell R330 server based
  • CE/FCC Certified, UL Listed, RoHS Compliant

Standard Features

  • Server Load Balancing (SLB) for any TCP or UDP based protocol
  • SSL Acceleration/Offload
  • Layer 7 Content Switching
  • No bandwidth, performance or feature limitations
  • High performance Direct Routing (N-Path), TUN, NAT and SNAT
  • Schedulers: Round Robin, Least Connection, Weighted Least Connection, Weighted Round Robin
  • Dynamic Schedulers: Windows and Linux feedback agents, Custom HTTP feedback option
  • Load balance almost ANY protocol i.e. HTTP, HTTPS, SMTP, POP3, IMAP, Terminal Server, etc.
  • Support for Direct Server Return (DSR) configurations
  • Configurable S-NAT support
  • Link aggregation (802.3ad)
  • VLAN Tagging (802.1Q)
  • GSLB

SSL

  • PCI-ready SSL Implementation
  • Unlimited support for SSL Certificates
  • Support for Third Party Certificates
  • Automated SSL Certificate Chaining
  • SSL Certificate Signing Request (CSR) Generation
  • PFX upload and conversion
  • Proxy protocol support

Performance

  • Up to 48Gbps Throughput
  • SSL Acceleration/Offload up to 19,584 TPS
  • 351,298 HTTP RPS
  • Average 36,134Mbps Throughput
  • 31,200,000 Concurrent sessions

L4/L7 sticky persistence

  • Connection persistence based on
    • Source IP address
    • SSL Session ID
    • Passive Cookie
    • Active Cookie (Insert)
    • RDP Cookie/Session Broker
    • X-forwarded for header (better than Super HTTPS)
  • Port following (Persistence on multiple combined ports)
  • Multiple fallback options i.e. use source IP if no cookie found

Security functionality

  • Fully integrated WAF (Web Application Firewall)
  • OWASP top 10 protection
  • Persistent White/Black List (Access Control List system)
  • Firewall filtering (full iptables scripting support)
  • Firewall lock down wizard
  • DDOS mitigation both at layer 4 and 7
  • Virtual patching
  • HTTP and SYN Flood protection
  • Block SQL Injection Attacks
  • Prevent Cross Site Scripting (XSS)
  • Stop Hackers Exploiting Software Vulnerabilities
  • FIPS 140-2 Compliant
  • PCI DSS Ready

Health checking and high availability

  • Application health checking for DNS, FTP, HTTP, HTTPS, IMAP, NNTP and many more
  • ICMP health checking of server farm machines
  • Complex manually scripted health checks
  • Automatic reconfiguration for defective real server machines
  • Automatically remove a failed server from the load balancing pool
  • Automatic replication of static and dynamic configuration from master to slave load balancer
  • Stateful Failover (persistence table replication)
  • One click secure clustered pair configuration

Scheduling and balancing methods

  • Round Robin
  • Weighted Round Robin
  • Least Connection
  • Weighted Least Connection
  • Agent-based Adaptive (Windows and Linux Agents)
  • Layer 7 Content Switching
  • Destination Hash for transparent proxy

Administration

  • Secure, SSH, HTTP and HTTPS for remote access administration
  • Fully configurable using Web User Interface (WUI)
  • Easy start configuration and maintenance wizards
  • WebUI-based Help Assistant
  • Virtual Service Configurations can be edited and tuned on-the-fly
  • Real time performance and availability displays
  • Optionally configure console port for local administration
  • Remotely scriptable Command Line Interface (LBCLI) Option
  • SOAP interface to the LBCLI API
  • Local and Remote syslogd support
  • Selective restore of physical and Virtual Service data
  • Support for Connection Draining or halting with or without persistence
  • Software and Security updates available on and off-line
  • WebUI Log Reporting with Tabbed Browser Support
  • SNMP support for performance metrics
  • Full root access to with a multitude of diagnostic tools tcpdump etc.

Warranty and support services

  • Hardware Warranty:
    • 3 Years Next Business Day On-site Engineer included as standard
  • Support Options:
    • Standard support – Unlimited 24/7 access to our Technical Support Engineers
    • Basic support – Unlimited support during business hours (8×5)

Find the right hardware product for your application



    Enterprise R20

    $3,995

    Find out more

    Enterprise MAX

    $5,995

    Find out more

    Enterprise 10G

    $7,995

    Find out more

    Enterprise 50G

    $9,995

    Find out more

    Enterprise 100G

    POA*

    Find out more
    Throughput4Gbps4Gbps18Gbps48Gbps88Gbps
    HTTP RPS227,405227,405270,244316,168632,336
    Maximum Connections15,600,00015,600,00031,200,00031,200,00062,400,000
    SSL TPS ECC (3K** key)10,30610,30619,58419,58430,059
    • *Please contact us for pricing.
    • **256-bit ECC key equates to the same security as 3,072-bit RSA key.
