Enterprise 100G

88Gbps

Throughput

702,596

HTTP RPS

62,400,000

Max Conns

30,059

SSL TPS

Sophisticated, not complicated

Configure & Test

Simple setup and configuration using our intuitive WUI

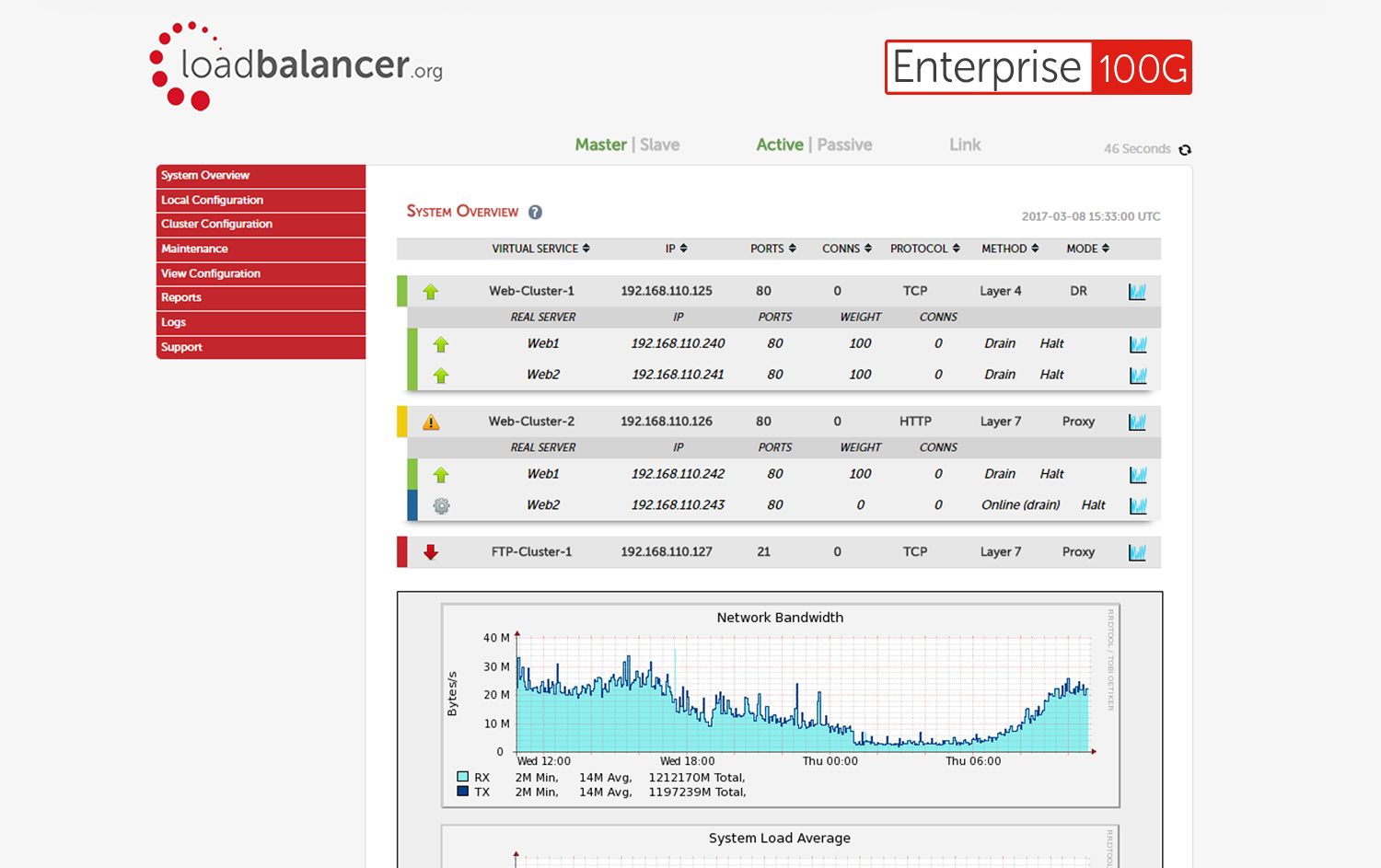

Monitor & Control

Securely monitor your infrastructure and traffic

Secure & Maintain

Hitch-free maintenance of your servers and applications

Technical Specifications

Product Overview

Future-proof any application environment with our most advanced product to date – the Enterprise 100G. Our premium hardware load balancer delivers unrivalled performance,  blistering throughput and total redundancy. Add a pair of Enterprise 100Gs in HA failover mode to make downtime a thing of the past.

Hardware platform

  • 2 X 10/100/1000Mbps Auto-negotiation Ethernet ports
  • Optional Cards:
    • 2 x 100GbE on Mellanox MCX516A-CDAT
    • 4 x 25GbE on Mellanox MCX512F-ACAT
    • 4 x 40GbE on Mellanox MCX314A-BCCT
    • 2 x 50GbE on Mellanox MCX516A-GCAT
  • Redundant PSU
  • 32Gb DDR RAM
  • Intel® Xeon® Gold
  • Local console access via VGA, USB, Serial
  • Remote console access via SSH
  • Dell R440 server based
  • CE/FCC Certified, UL Listed, RoHS Compliant

Standard Features

  • Server Load Balancing (SLB) for any TCP or UDP based protocol
  • SSL Acceleration/Offload
  • Layer 7 Content Switching
  • No bandwidth, performance or feature limitations
  • High performance Direct Routing (N-Path), TUN, NAT and SNAT
  • Schedulers: Round Robin, Least Connection, Weighted Least Connection, Weighted Round Robin
  • Dynamic Schedulers: Windows and Linux feedback agents, Custom HTTP feedback option
  • Load balance almost ANY protocol i.e. HTTP, HTTPS, SMTP, POP3, IMAP, Terminal Server, etc.
  • Support for Direct Server Return (DSR) configurations
  • Configurable S-NAT support
  • Link aggregation (802.3ad)
  • VLAN Tagging (802.1Q)
  • GSLB

SSL

  • PCI-ready SSL Implementation
  • Unlimited support for SSL Certificates
  • Support for Third Party Certificates
  • Automated SSL Certificate Chaining
  • SSL Certificate Signing Request (CSR) Generation
  • PFX upload and conversion
  • Proxy protocol support

Performance

  • Up to 88Gbps Throughput
  • SSL Acceleration/Offload up to 30,059 TPS
  • 702,596 HTTP RPS
  • Average 72,228 Mbps Throughput
  • 62,400,000 Concurrent sessions

L4/L7 sticky persistence

  • Connection persistence based on
    • Source IP address
    • SSL Session ID
    • Passive Cookie
    • Active Cookie (Insert)
    • RDP Cookie/Session Broker
    • X-forwarded for header (better than Super HTTPS)
  • Port following (Persistence on multiple combined ports)
  • Multiple fallback options i.e. use source IP if no cookie found

Security functionality

  • Fully integrated WAF (Web Application Firewall)
  • OWASP top 10 protection
  • Persistent White/Black List (Access Control List system)
  • Firewall filtering (full iptables scripting support)
  • Firewall lock down wizard
  • DDOS mitigation both at layer 4 and 7
  • Virtual patching
  • HTTP and SYN Flood protection
  • Block SQL Injection Attacks
  • Prevent Cross Site Scripting (XSS)
  • Stop Hackers Exploiting Software Vulnerabilities
  • FIPS 140-2 Compliant
  • PCI DSS Ready

Health checking and high availability

  • Application health checking for DNS, FTP, HTTP, HTTPS, IMAP, NNTP and many more
  • ICMP health checking of server farm machines
  • Complex manually scripted health checks
  • Automatic reconfiguration for defective real server machines
  • Automatically remove a failed server from the load balancing pool
  • Automatic replication of static and dynamic configuration from master to slave load balancer
  • Stateful Failover (persistence table replication)
  • One click secure clustered pair configuration

Scheduling and balancing methods

  • Round Robin
  • Weighted Round Robin
  • Least Connection
  • Weighted Least Connection
  • Agent-based Adaptive (Windows and Linux Agents)
  • Layer 7 Content Switching
  • Destination Hash for transparent proxy

Administration

  • Secure, SSH, HTTP and HTTPS for remote access administration
  • Fully configurable using Web User Interface (WUI)
  • Easy start configuration and maintenance wizards
  • WebUI-based Help Assistant
  • Virtual Service Configurations can be edited and tuned on-the-fly
  • Real time performance and availability displays
  • Optionally configure console port for local administration
  • Remotely scriptable Command Line Interface (LBCLI) Option
  • SOAP interface to the LBCLI API
  • Local and Remote syslogd support
  • Selective restore of physical and Virtual Service data
  • Support for Connection Draining or halting with or without persistence
  • Software and Security updates available on and off-line
  • WebUI Log Reporting with Tabbed Browser Support
  • SNMP support for performance metrics
  • Full root access to with a multitude of diagnostic tools tcpdump etc.

Warranty and support services

  • Hardware Warranty:
    • 3 Years Next Business Day On-site Engineer included as standard
  • Support Options:
    • Standard support – Unlimited 24/7 access to our Technical Support Engineers
    • Basic support – Unlimited support during business hours (8×5)

Find the right hardware product for your application



    Enterprise R20

    $3,995

    Find out more

    Enterprise MAX

    $5,995

    Find out more

    Enterprise 10G

    $7,995

    Find out more

    Enterprise 50G

    $9,995

    Find out more

    Enterprise 100G

    POA*

    Find out more
    Throughput4Gbps4Gbps18Gbps48Gbps88Gbps
    HTTP RPS227,405227,405270,244316,168632,336
    Maximum Connections15,600,00015,600,00031,200,00031,200,00062,400,000
    SSL TPS ECC (3K** key)10,30610,30619,58419,58430,059
    • *Please contact us for pricing.
    • **256-bit ECC key equates to the same security as 3,072-bit RSA key.
